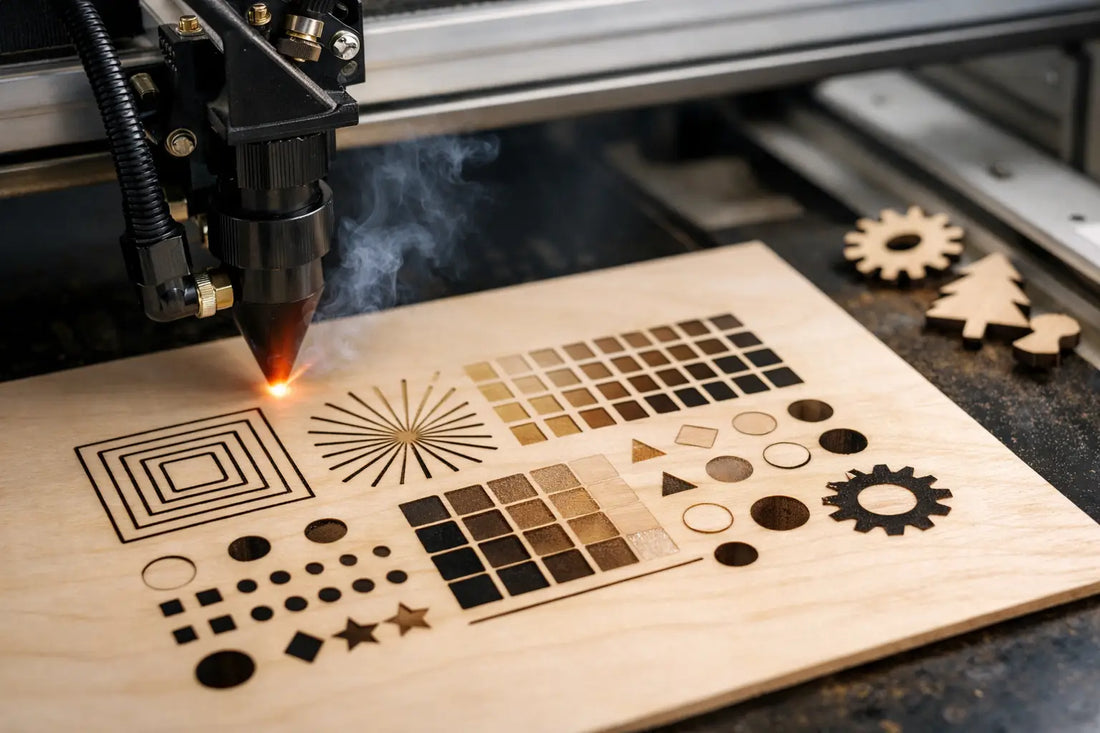

Laser Focus Test Template for Cleaner Cuts

A laser can have the right power and speed settings and still leave you with fuzzy engraving, wide cut lines, stubborn tabs, or edges that look more burned than finished. Before you blame the material or increase power, run a laser focus test template. It gives you a visible, repeatable way to find where your machine produces its smallest, strongest beam.

For a maker selling personalized signs, earrings, coasters, or engraved gifts, focus is not a tiny technical detail. It affects how cleanly your pieces come off the bed, how much sanding they need, and how confidently you can run the next order. A focused beam turns a setting you hope will work into one you can document and use again.

What a Laser Focus Test Template Actually Tests

A focus test template is a file designed to engrave or cut the same small shape, line, or text sample at several different distances from the laser lens or nozzle. Each result corresponds to a different focal position. When you compare the samples, the winning position is usually obvious: it has the finest engraved detail, the narrowest line, the deepest mark at the same power, or the cleanest cut-through.

The key is consistency. Power, speed, material, air assist, and lens condition must stay the same while only the focus distance changes. If you change three things at once, the test may look interesting, but it will not tell you what actually improved the result.

A good template creates labeled results you can keep. Instead of writing “focus seemed good around here” on a scrap of plywood, you can record a measured setting such as 0.5 mm above material surface or 2 mm below surface for a particular lens and material thickness.

Why Perfect Focus Saves More Than Scrap Material

The beam coming from your laser is shaped like a narrow waist. At or near its focal point, that waist is at its smallest. The energy is concentrated into a tighter spot, which is why fine engraving sharpens up and cutting becomes more efficient.

When the beam is focused too high, it reaches the material before it has narrowed enough. When it is focused too low, it has already begun spreading again. Either way, energy is distributed across a wider area. You may compensate by slowing the machine or raising power, but that often creates darker edges, more smoke staining, and a wider kerf.

For engraving, the best focus commonly gives you crisper small lettering, cleaner photo dithering, and more consistent fill areas. For cutting, it can mean fewer passes, less char on wood, and joints that fit closer to the intended size. The trade-off is that the single sharpest surface focus is not always the best choice for every thick cut.

On thicker plywood, MDF, or acrylic, focusing slightly into the material can improve the cut lower in the sheet. This may make the top edge a little less perfect while reducing the chance of incomplete cut-through at the bottom. That is why separate tests for engraving and cutting are worth the few minutes they take.

How to Run a Laser Focus Test Template

Start with the material you actually plan to use. A focus setting that looks excellent on basswood may not be your favorite setting for dark acrylic, leather, or coated metal. Material thickness, density, surface finish, and the job itself all influence the final choice.

Clean the lens or protective window first. A dirty optic can scatter the beam and make a focus issue look worse than it is. Confirm that the material is flat on the bed as well. A bowed board makes one area of the test closer to the nozzle than another, which defeats the point.

Set one reliable baseline

Choose conservative settings that create a visible engraving or a near-complete cut without excessive burning. For an engraving focus test, use a compact design with thin lines, small text, and a filled area. For a cutting test, use small squares, circles, or slots that are easy to remove and compare.

Keep your baseline unchanged through the full test. That means the same power percentage, speed, interval or LPI for engraving, number of passes, and air assist setting. If your machine has a focus tool or autofocus system, use its normal position as your center point, then test above and below it.

Test in small, labeled increments

For most diode and CO2 machines, 0.5 mm or 1 mm increments give useful results. A common range is five positions above the nominal focus and five below it, but the right range depends on your lens and how certain you are about the starting point. If the best result lands at the edge of the test, run another test centered around that new winner.

You can move the laser head, raise or lower the bed, or use material shims to create each distance. Bed adjustment is usually the cleanest method because it keeps the workpiece flat. If you use shims, make sure they support the entire test area and do not introduce a slope.

Label every sample directly in the file. Include the offset, material, thickness, date, and job type whenever possible. A template is most valuable when you can look at it two months later and know exactly what it represents.

Compare the results like a production maker

Do not judge the test from across the room. Remove the material, inspect it under good light, and compare the samples side by side. For engraving, look at line sharpness, readability of tiny text, fill consistency, and unwanted charring. For cuts, check whether pieces release cleanly, how narrow the kerf appears, and whether the bottom edge finished as well as the top.

The darkest result is not automatically the best result. A slightly lighter engraving may hold much finer detail. Likewise, the deepest-looking cut may have a large kerf that creates loose tab-and-slot joints. Pick the focus setting that supports the finished product you want to make.

Build a Focus Record You Can Reuse

Once you find a winner, save it in a material settings log. Record the laser type and wattage, lens or nozzle, focus method, material brand and thickness, plus the final power and speed. If you use LightBurn, add the setting to your material library with a clear name rather than trusting memory.

Your record does not need to be complicated. It simply needs to answer the question you will have later: “What worked on this exact material?” Include whether air assist was on, whether you used masking, and whether the setting was intended for surface engraving, deep engraving, or cutting.

This is especially helpful if you work across several machines. A 10W diode laser, a 40W CO2 laser, and a higher-wattage production machine do not share the same beam characteristics, even when the material is identical. Each machine deserves its own focus test and settings record.

Common Focus-Test Mistakes That Waste Results

The most common mistake is testing focus with inconsistent material. Plywood can vary dramatically across a single sheet, especially if there are voids, glue pockets, or changes in grain density. Use a uniform scrap when possible and place your samples close together.

Another mistake is running the test too fast or too lightly. If every result is barely visible, you cannot clearly identify the sharpest one. Increase contrast enough to reveal differences, but avoid settings so aggressive that everything becomes an oversized burned mark.

It is also easy to confuse alignment or mechanical problems with poor focus. If one side of the bed produces good results and the other side does not, check bed level, gantry alignment, belt tension, and lens cleanliness. A focus template tests focal distance, not every possible cause of uneven performance.

Finally, do not treat one test as permanent truth. Recheck focus after changing lenses, replacing a nozzle, servicing your machine, installing a new bed, or switching to a very different material thickness. Calibration is a practical habit, not a one-time ceremony.

Turn a Test Into Better Finished Work

The best laser focus test template is the one you will actually run before a material-sensitive project. It should be clearly labeled, quick to set up, and detailed enough to show a real difference between focal positions. Keep a version for engraving and another for cutting, because the best answer is often different.

Laser Cut Empire calibration resources are built around this same maker-first idea: test with purpose, keep the result, and spend more time creating instead of rescuing failed pieces. A few measured minutes before production can protect an entire sheet of premium acrylic or a rush order of custom gifts.

When your beam is focused with intention, fine details become easier to trust, cuts become easier to assemble, and every finished piece has a better chance of looking like the work you pictured before you pressed Start.
