Laser Kerf Test for Acrylic: Better-Fit Parts

A laser kerf test for acrylic can be the difference between a press-fit box that snaps together beautifully and one that feels loose, cracks at the tabs, or needs glue to hide a bad fit. Acrylic is unforgiving in the best and worst ways: it can produce crisp, polished-looking parts, but it also makes small measurement errors obvious. If you want clean display stands, layered signs, earrings, ornaments, keychains, or sellable product parts, kerf is one setting you should not guess.

Kerf testing takes a few minutes and saves far more time than it costs. Instead of changing every slot in a design by trial and error, you create a small test, measure the result, and use that real-world number to design parts that fit your material and machine.

What Kerf Means When Cutting Acrylic

Kerf is the width of material removed by the laser beam during a cut. Your laser does not follow a zero-width line. It vaporizes a narrow channel, and that channel changes the size of the finished piece.

For example, when a laser cuts a 1-inch square, the outside piece may end up slightly smaller than the vector line. The opening left behind may end up slightly larger. That difference matters whenever two pieces must connect, especially in press-fit construction.

Acrylic kerf depends on more than laser wattage. Power, speed, focus, air assist, lens condition, material thickness, acrylic color, and whether the sheet is cast or extruded all play a role. A 3 mm black cast acrylic sheet may cut differently from a 3 mm clear extruded sheet, even on the same laser with the same saved settings.

That is why a kerf value should be treated as a material-specific production setting, not a permanent machine setting. Keep notes by material type, thickness, color, and laser setup. Your future self will thank you when an order calls for a repeatable batch of 50 matching pieces.

Why a Laser Kerf Test for Acrylic Beats Guesswork

Many makers begin with a downloaded design, send it to the laser, and discover that the tabs are too tight or the slots are too loose. Then comes the frustrating cycle: resize the slot, cut another part, sand an edge, adjust again, and lose more acrylic.

A proper laser kerf test for acrylic replaces that cycle with a measured workflow. You learn how your beam behaves before committing to a full sheet or a detailed project. This is especially valuable with acrylic because material costs add up quickly, and cracked press-fit tabs are not easily rescued.

There is a trade-off. A test does not make every future setting universal. If you change focus, clean a dirty lens, switch from one acrylic supplier to another, or alter speed to improve edge quality, test again. But even with that limitation, a quick test gives you a reliable starting point instead of a hopeful estimate.

How to Run an Accurate Kerf Test

Start with the exact acrylic you plan to use for the project. Ideally, use an offcut from the same sheet. A scrap of white cast acrylic is useful for white cast acrylic, but it is not a stand-in for transparent red, glitter acrylic, or a different thickness.

Cut a Simple Measurable Shape

The most direct test uses a square or circle cut from a known vector dimension. A 20 mm square is easy to measure and large enough for most calipers. Cut it using the power, speed, frequency or PWM settings, focus position, and air assist setup you expect to use in production.

Let the acrylic cool briefly, then remove the piece carefully. Do not force it out in a way that chips an edge or flexes a delicate test part. Remove protective masking only if it interferes with your measurement.

Use digital calipers to measure the finished outside dimension in several places. Measure both directions on a square because belt tension, alignment, or motion-system variation can create slightly different results on the X and Y axes.

Calculate the Kerf Value

Take the original vector size and subtract the measured size of the cut piece. Then divide the result by two.

If your vector square was 20.00 mm and the finished acrylic square measures 19.80 mm, the calculation is:

(20.00 - 19.80) / 2 = 0.10 mm kerf

The laser removed approximately 0.10 mm from each side of the line. That number is a practical starting point for kerf compensation.

Do not rely on one measurement alone. Measure three to five times and use an average. If your readings vary wildly, check whether the cut edge is melting, whether the sheet is warped, whether the caliper jaws are square to the edge, or whether your machine needs alignment attention.

Confirm It With a Slot Test

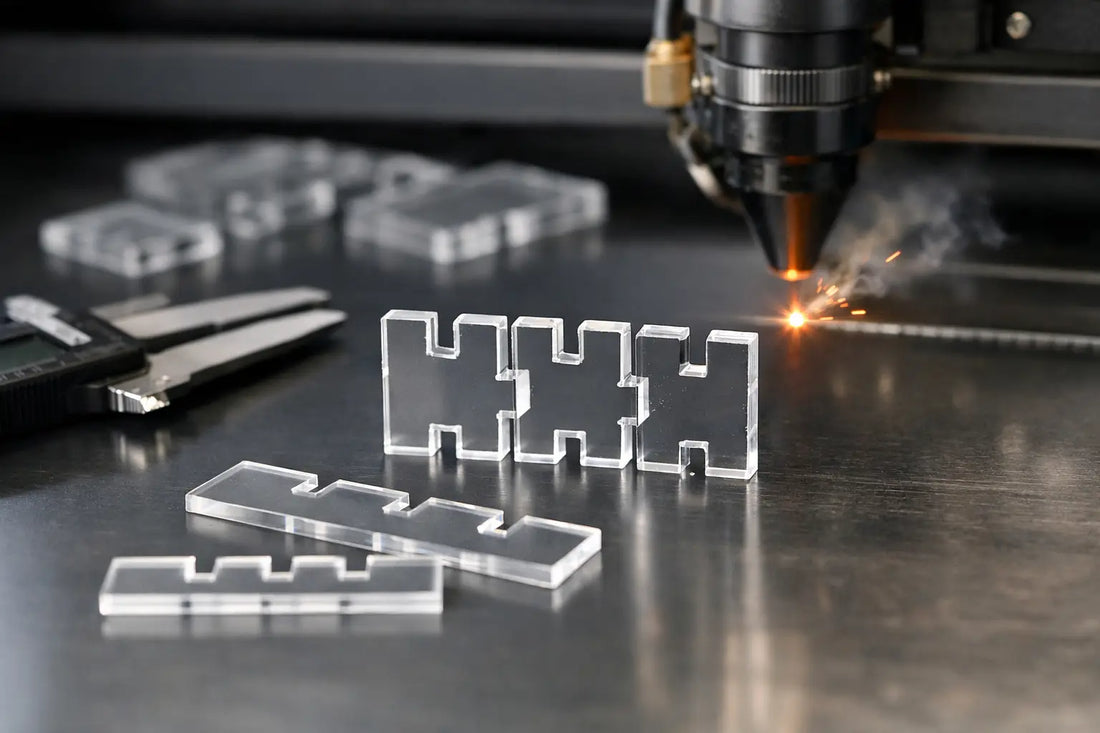

The measurement formula is useful, but a slot-and-tab test confirms what really matters: fit. Make a small comb-style test with several slots that change in tiny increments, such as 0.05 mm. Cut matching tabs from the same acrylic and test each connection by hand.

The ideal press fit is not always the tightest fit. For a small ornament, you may want a firm connection that can still be assembled without tools. For a freestanding display or a box, you may choose a slightly tighter fit. For thin, brittle, or highly detailed acrylic, too much force can create stress cracks, so a looser connection plus acrylic cement may be the smarter production choice.

Applying Kerf Compensation to Your Design

Once you know your kerf, compensate in the direction that protects your fit. Outside shapes generally need to become slightly larger in the design so the finished part lands on the intended size. Internal holes and slots generally need to become slightly smaller in the design so the laser opening lands correctly after material is removed.

For press-fit parts, the math is only the beginning. Material thickness varies, even when a sheet is labeled 3 mm or 1/8 inch. Measure your actual sheet with calipers. A nominal 3 mm acrylic sheet might be closer to 2.85 mm or 3.10 mm, and a slot built around the label instead of the real thickness will not behave as expected.

A good workflow is to use the measured material thickness as your baseline, then adjust your slot width according to your kerf test and desired fit. Keep the adjustment modest. Trying to force a perfect fit through a large compensation value can lead to brittle tabs, hard assembly, and broken customer confidence.

If you work in LightBurn, use its kerf offset tools carefully and confirm whether the offset applies to selected shapes, internal paths, external paths, or both. Run a small verification cut after applying the setting. Automated offsets are fast, but your material and design still have the final say.

Common Acrylic Kerf Problems and What They Reveal

If your results look inconsistent, the issue may be bigger than kerf. A changing cut width can point to a setup problem that will affect every project you make.

A wide, melted edge often means too much heat is being delivered. Try increasing speed, reducing power where possible, improving air assist, or checking focus. A cut that fails to separate may require more power, lower speed, a second pass, or better focus, but do not simply slow the job down until the acrylic flames or the edge turns excessively rough.

Clear acrylic deserves extra caution. Some laser types and wavelengths do not interact with clear acrylic the same way they do with dark or opaque sheets. A diode laser, in particular, may struggle with clear material, while a CO2 laser is generally better suited to cutting it. Always test safely on a small piece before planning a full project.

If one side of a square measures differently from the other, inspect machine alignment, belts, mirrors on a CO2 machine, and focus consistency across the bed. A calibration test can expose these issues before they become a stack of unusable parts. Laser Cut Empire's calibration resources are built around that practical goal: fewer mystery failures, less wasted material, and settings you can repeat with confidence.

Build a Kerf Library, Not a One-Time Test

The fastest makers are not necessarily the ones who run the laser at the highest speed. They are the ones who can begin with dependable settings because they have documented what works. Save your kerf results in a simple notebook, spreadsheet, or material card beside your acrylic stock.

Record the acrylic brand or supplier, cast or extruded type, thickness, color, laser wattage, lens or focus setup, speed, power, air assist, number of passes, and measured kerf. Add a note about edge quality and press-fit behavior. That small record turns random testing into a production system.

A laser beam can turn a flat sheet into a lasting work of art, but the best projects also depend on the details nobody sees at first glance. Run the test, measure the result, and let every clean-fitting acrylic part prove that your process is working.
