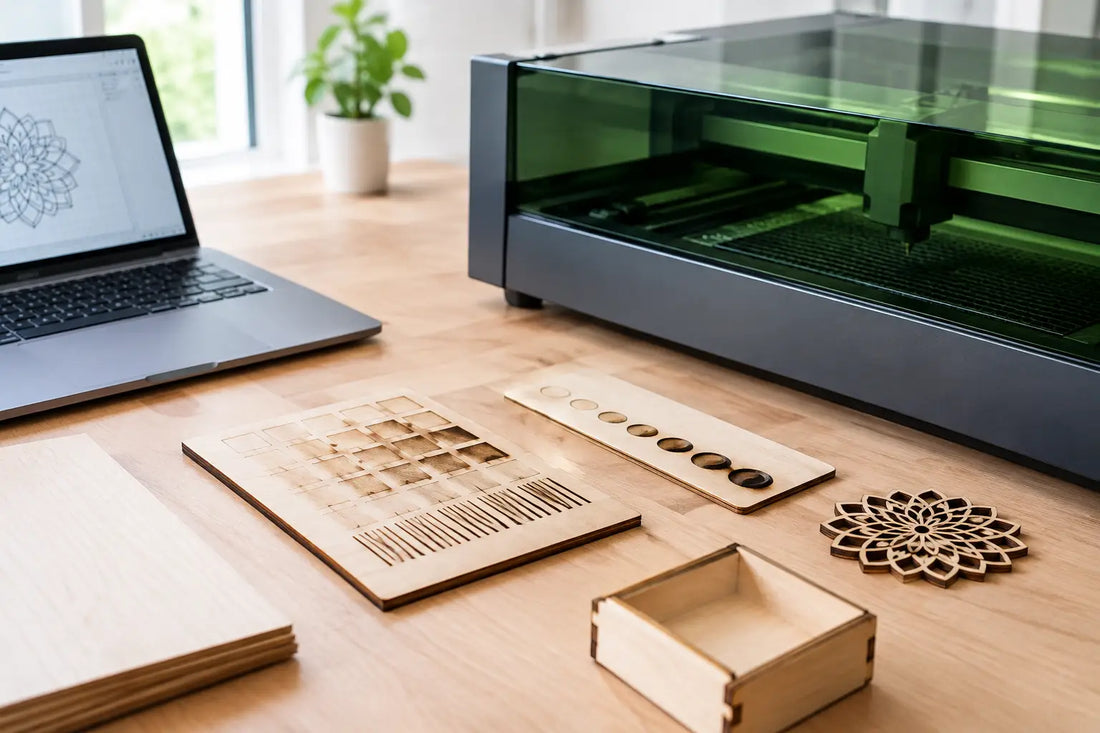

xTool Laser Calibration Files That Save Material

A beautiful laser project can still fail before the real work begins. One acrylic sign may cut perfectly while the next leaves stubborn tabs. A wood engraving may look crisp at one speed, then turn smoky and soft after a material change. That is exactly where xTool laser calibration files earn their place in your workspace. They turn guessing into a repeatable test process, so you can spend less time sacrificing material and more time making pieces you are proud to sell, gift, or display.

For makers using xTool diode or CO2 machines, calibration is not a one-time chore. It is the practical foundation behind cleaner vectors, sharper engraving, reliable cut-through, and production settings you can trust.

What xTool Laser Calibration Files Actually Do

Calibration files are purpose-built test layouts that let you evaluate multiple laser settings in one organized run. Instead of cutting ten separate squares and trying to remember which speed you used, you run a labeled grid or targeted test. The result gives you a visual record of how your laser responds to a particular material.

The best files do more than fill a sheet with boxes. They help you test the variables that decide whether a project succeeds: power, speed, focus, kerf, line interval, and alignment. Each test isolates a useful question. What setting produces the darkest readable slate engraving? What speed cuts 3 mm basswood without excessive charring? How much material does your cut line remove when parts need to fit together?

That last question matters more than many new users expect. A box with finger joints can look flawless on screen but fit loosely or refuse to assemble if kerf is ignored. A calibration file gives you numbers and visible results you can apply to the next design rather than hoping a generic setting works.

Start With the Material, Not a Random Setting

A setting that works beautifully on one piece of plywood may fail on another sheet from the same store. Wood density, glue layers, grain direction, finish, moisture, color, and thickness all affect the beam. Acrylic is just as variable, especially when comparing cast and extruded sheets. Leather, cardboard, coated tumblers, and anodized aluminum introduce their own behavior.

This is why copying a setting from a social post can be a useful starting point, but it should never be your final answer. The machine wattage matters, yet material behavior matters just as much. A 10W diode and a 20W diode will not share the same ideal cut settings. Even two makers using the same xTool model may need different results because their materials and working conditions differ.

Run your first test on an offcut from the actual batch you plan to use. Label the offcut if possible, including supplier, thickness, and finish. That small habit makes your settings library genuinely useful months later.

The Tests Worth Running First

Power and speed grids

A power and speed grid is the test most makers should run first. It combines a range of power percentages with a range of speeds, creating a clear matrix of engraved or cut samples. For engraving, look for a result with enough contrast and detail without deep scorching, fuzzy edges, or excessive cleanup. For cutting, look for a line that separates cleanly with the least practical char.

Do not automatically choose the darkest engraving square. Very dark marks can hide fine detail, create a rough surface, or take longer than necessary. If you are making products in batches, a setting that is slightly lighter but faster and cleaner may be the more profitable choice.

Focus tests

Focus is one of the easiest details to overlook and one of the fastest ways to lose engraving quality. A focus test checks how the beam performs at small changes above and below the recommended focal point. Depending on your material and project, the best point may be the standard surface focus or a slight adjustment that improves the result.

For thick materials, you may also need to decide where the beam should be focused. Surface focus can create a cleaner top edge, while focusing lower in the material may improve cut-through. There is no universal winner. Test it on the material, then save the result.

Kerf tests

Kerf is the width of material removed by the laser beam. It may be tiny, but a tiny difference repeated across multiple joints can ruin the fit of a press-fit design. Kerf test files commonly use slots, tabs, or stepped samples that reveal how tightly parts fit at different compensation values.

Once you identify the best fit, apply that compensation in your design software or adjust the design intentionally before production. This is especially valuable for layered signs, boxes, ornaments, puzzle-style projects, and any product with interlocking parts.

Line interval and detail tests

For photo engraving, filled graphics, and fine artwork, line interval deserves attention. A tight interval can create richer coverage, but it can also slow production and burn materials unnecessarily. A wider interval may be faster, though it can leave visible lines or weaker contrast.

Run a detailed test containing fine lines, small text, shading, and solid filled areas. You are looking for a balance: readable text, smooth coverage, clean edges, and a production time that makes sense for your workflow.

A Better Workflow for Reading Your Results

The goal is not to find one magical setting. The goal is to create a dependable range you understand. After a test finishes, inspect it under normal room light, then look closer at edges and small details. For cuts, gently check whether pieces release without force. For engravings, wipe away residue before judging contrast.

Record the winning settings immediately. Include machine model, laser module or wattage, material, thickness, power, speed, passes, focus position, air assist status, and any cleanup notes. A note such as “3 mm birch plywood, supplier A, 85% power, 220 mm/min, one pass, light edge char” can save a surprising amount of time later.

It also helps to keep the physical test piece. Write the settings directly on the back or store it in a labeled sample binder. A digital note tells you the numbers; a physical sample reminds you how the finish actually looked and felt.

Common Calibration Mistakes That Cost Material

The most common mistake is changing several variables at once without a clear test layout. If you adjust power, speed, focus, air assist, and line interval together, you will not know what improved the result. Start with one organized test, make a decision, then refine one variable at a time.

Another issue is forgetting machine maintenance. A dirty lens or protective window, loose belt, misaligned mirrors on a CO2 machine, poor ventilation, or weak air assist can make good settings look bad. Calibration files reveal performance, but they cannot compensate for a machine that needs attention.

Finally, do not treat a successful cut as the only measure of success. If it cuts through but takes too long, chars heavily, or leaves a finish that requires sanding on every item, it may not be the right production setting. The best result is clean enough for your project, consistent enough to repeat, and efficient enough to protect your time and materials.

Build a Settings Library You Can Use for Real Orders

Once calibration becomes routine, it stops feeling like setup work and starts becoming part of your creative advantage. Before a new product launch, test the exact material and finish. Before a large order, run a small confirmation test, especially if you have opened a new batch of stock. The few minutes you invest can prevent a stack of unusable blanks.

Organized calibration resources, such as the LightBurn-focused files from Laser Cut Empire, can make this process much faster because the layouts are designed to give you readable, useful comparisons instead of random trial cuts. That means more confidence when you move from an idea to a finished product.

Keep testing when the material changes, protect your winning settings, and let each sample teach you something. Your laser is capable of turning a beam of light into lasting work of art. Calibration is how you give that beam a clear job to do.
